American Standard Roller Chain
American Standard chains commonly known as ASA chains.

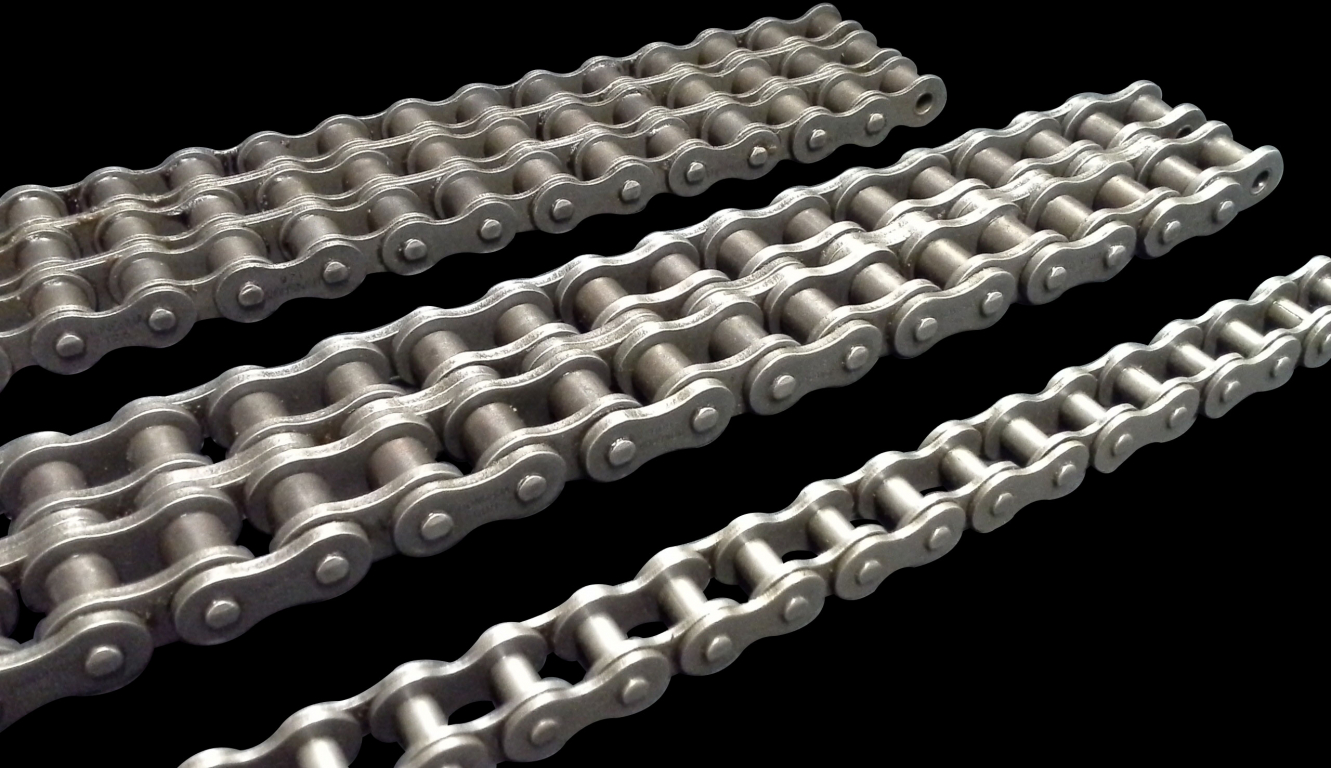

Currently we stock a range of transmission roller chains from ASA25 (1/4" Pitch) through to ASA200 (2 1/2" Pitch) in simplex, duplex and triplex. Con links and half links are also available.
Along with the standard chains, we also offer multi strand chains for the logging industry. This includes 4 strand, 5 stand and 6 strand to suit ASA50 - ASA120
All chains have gone through Donghua's testing systems and qualitiy control facilities manufactured to the ISO (International Standards) ANSI, BS, DIN and JIS standards.
Donghua not only do the standard roller chain but they also offer heavy roller chain or HSP chain (Heavy Super Power roller chain) - Spec sheets and info sheets for HSP are below. These chains are specific for Agricultural machinery but have also been used in many other high intensity running applications. Listed below are the simplex dimensions but for duplex/triplex or multi-strand options please consult our PDF's or feel free to get into contact.
Currently we stock a range of transmission roller chains from ASA25 (1/4" Pitch) through to ASA200 (2 1/2" Pitch) in simplex, duplex and triplex. Con links and half links are also available.
Along with the standard chains, we also offer multi strand chains for the logging industry. This includes 4 strand, 5 stand and 6 strand to suit ASA50 - ASA120
All chains have gone through Donghua's testing systems and qualitiy control facilities manufactured to the ISO (International Standards) ANSI, BS, DIN and JIS standards.
Donghua not only do the standard roller chain but they also offer heavy roller chain or HSP chain (Heavy Super Power roller chain) - Spec sheets and info sheets for HSP are below. These chains are specific for Agricultural machinery but have also been used in many other high intensity running applications. Listed below are the simplex dimensions but for duplex/triplex or multi-strand options please consult our PDF's or feel free to get into contact.
 | American Roller chain.pdf (1039 KB) |
| HSP Brochure PG1.pdf (114 KB) |
| HSP Brochure PG2.pdf (495 KB) |
_copy_%5B1024x768%5D.png "American Transmission roller chain")
| Name | Pitch | Roller Diameter | Width between inner plates | Pin Diameter | Pin Length | Pin Length | Plate Thickness | Average Tensile Strength | ANSI Chain Number | Inner Plate Depth | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d1 max | b1 min | d2 max | L max | Lc max | T max | Qo | h2 max | |||
| mm | mm | mm | mm | mm | mm | mm | kN | mm | |||
| ASA25-1 | 6.350mm | 3.30mm | 3.18mm | 2.31mm | 7.90mm | 8.40mm | 0.80mm | 4.6 | 25 | 6.00mm | Enquire |
| ASA35-1 | 9.525mm | 5.08mm | 4.77mm | 3.58mm | 12.40mm | 13.17mm | 1.30mm | 10.8 | 35 | 9.00mm | Enquire |
| ASA40-1 | 12.700mm | 7.95mm | 7.85mm | 3.96mm | 16.60mm | 17.80mm | 1.50mm | 17.5 | 40 | 12.00mm | Enquire |
| ASA41-1 | 12.700mm | 7.77mm | 6.25mm | 3.58mm | 13.75mm | 15.00mm | 1.30mm | 12.6 | 41 | 9.91mm | Enquire |
| ASA50-1 | 15.875mm | 10.16mm | 9.40mm | 5.08mm | 20.70mm | 22.20mm | 2.03mm | 29.4 | 50 | 15.09mm | Enquire |
| ASA60-1 | 19.050mm | 11.91mm | 12.57mm | 5.94mm | 25.90mm | 27.70mm | 2.42mm | 41.5 | 60 | 18.00mm | Enquire |
| ASA80-1 | 25.400mm | 15.88mm | 15.75mm | 7.92mm | 32.70mm | 35.00mm | 3.25mm | 69.4 | 80 | 24.00mm | Enquire |
| ASA100-1 | 31.750mm | 19.05mm | 18.90mm | 9.53mm | 40.40mm | 44.70mm | 4.00mm | 109.2 | 100 | 30.00mm | Enquire |
| ASA120-1 | 38.100mm | 22.23mm | 25.22mm | 11.10mm | 50.30mm | 54.30mm | 4.80mm | 156.3 | 120 | 35.70mm | Enquire |
| ASA140-1 | 44.450mm | 25.40mm | 25.22mm | 12.70mm | 54.40mm | 59.00mm | 5.60mm | 212.0 | 140 | 41.00mm | Enquire |
| ASA160-1 | 50.800mm | 28.58mm | 31.55mm | 14.27mm | 64.80mm | 69.60mm | 6.40mm | 278.9 | 160 | 47.80mm | Enquire |
| ASA200-1 | 63.500mm | 39.68mm | 37.85mm | 19.85mm | 80.30mm | 87.20mm | 8.00mm | 431.6 | 200 | 60.00mm | Enquire |
