Chain Couplings

Chain Couplings

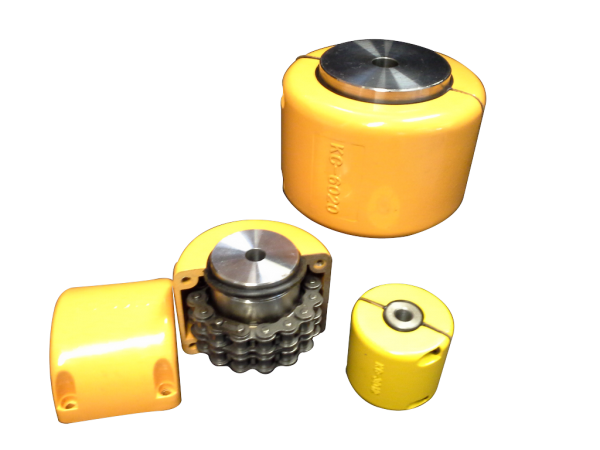

Chain couplings are composed of a duplex roller chain and a pair of coupling sprockets.  The function of the connection and detachment is done by the joint of the chain.  These  Chain Couplings the characteristics of: compact and powerful, excellent durability, safe and smart, simple installation and easy alignment.  Our chain couplings are suitable for a wide range of coupling applications; they are in stock as a pilot bore and we offer machining to bore these out to the required shaft size.

Chain Couplings Chain Couplings.pdf (675 KB)
Name Bore Dia Bore Dia Dimensions Dimensions Dimensions Dimensions Dimensions Dimensions Torque Rating Complete Weight Enquire
MIN MAX A B C D E F Nm KG
mm mm MM MM MM MM MM MM
3012 12 16 70 62 65 28 25 57 150 0.5 Enquire
4016 14 30 92 75 80 36 50 77 380 1.8 Enquire
5016 16 40 111 85 100 45 60 92 725 3.2 Enquire
5018 16 45 123 85 100 45 70 106 925 4.0 Enquire
6020 20 70 160 108 123 54 98 132 2050 9.5 Enquire
8020 30 85 211 138 144 67 120 184 4700 18.2 Enquire
10020 40 110 280 152 176 91 160 250 8700 36.0 Enquire
12018 40 120 305 180 196 119 170 280 13250 49.0 Enquire
