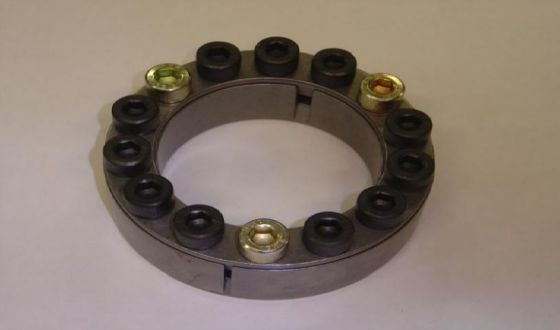

Locking Bush 200 Series CL2
Non Self-Centering - 200 series
Cone clamping unit consists of four pieces with two inside double cone-rings joined through a set of tightening screws. It is recommended for medium to high torques and although it is not self-centering, it can be easily assembled and disassembled. Available for shaft diameters from 20 to 900mm.
Characteristics
Cone clamping unit consists of four pieces with two inside double cone-rings joined through a set of tightening screws. It is recommended for medium to high torques and although it is not self-centering, it can be easily assembled and disassembled. Available for shaft diameters from 20 to 900mm.
Characteristics
Medium - high torque
Wide tolerances
Easy dismantling
Torque = Maximum transmittable torque when axial force is zero
Axial Force = Maximum axial force when transmittable torque is zero
Axial Force = Maximum axial force when transmittable torque is zero
