10B (5/8 Pitch)

There are 44 listings available, you are viewing 1—30.

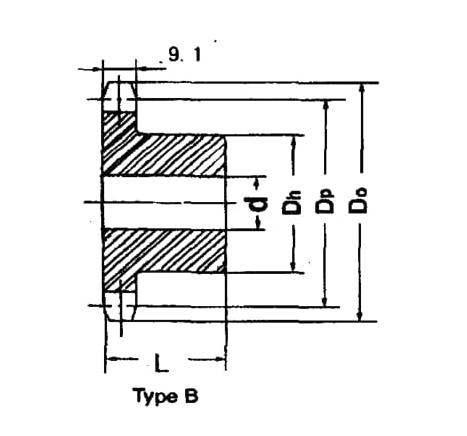

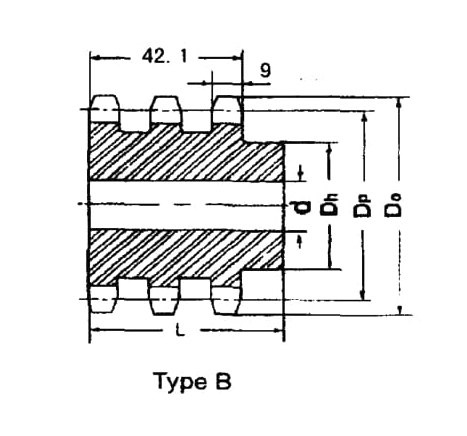

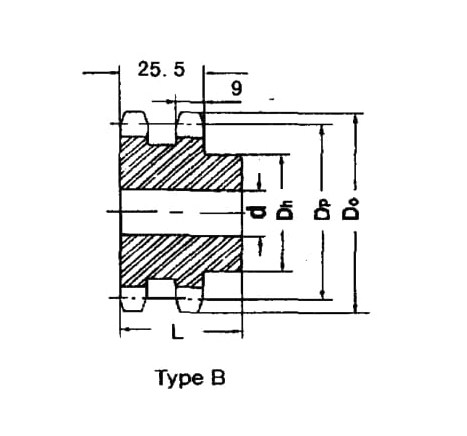

Name	Pitch	Outside	Bore	Hub	Hub	Duplex	Duplex	Duplex	Triplex	Triplex	Triplex	Enquire
Name	Via Dp	Dia Do	d	Dh	L	d	Dh	L	d	Dh	L	Enquire
8 teeth	41.48mm	47.00mm	10mm	25mm	25mm	12mm	25mm	40mm	12mm	25mm	55mm	Enquire
9 teeth	46.42mm	52.60mm	10mm	30mm	25mm	12mm	30mm	40mm	12mm	30mm	55mm	Enquire
10 teeth	51.37mm	57.50mm	10mm	35mm	25mm	12mm	35mm	40mm	16mm	35mm	55mm	Enquire
11 teeth	56.34mm	63.00mm	12mm	37mm	30mm	14mm	39mm	40mm	16mm	39mm	55mm	Enquire
12 teeth	61.34mm	68.00mm	12mm	42mm	30mm	14mm	44mm	40mm	16mm	44mm	55mm	Enquire
13 teeth	66.32mm	73.00mm	12mm	47mm	30mm	14mm	49mm	40mm	16mm	49mm	55mm	Enquire
14 teeth	71.34mm	78.00mm	12mm	52mm	30mm	14mm	54mm	40mm	16mm	54mm	55mm	Enquire
15 teeth	76.36mm	78.00mm	12mm	57mm	30mm	14mm	59mm	40mm	16mm	59mm	55mm	Enquire
16 teeth	81.37mm	88.00mm	14mm	60mm	30mm	16mm	64mm	45mm	16mm	64mm	60mm	Enquire
17 teeth	86.39mm	93.00mm	14mm	60mm	30mm	16mm	69mm	45mm	16mm	69mm	60mm	Enquire
18 teeth	91.42mm	98.30mm	14mm	70mm	30mm	16mm	74mm	45mm	16mm	74mm	60mm	Enquire
19 teeth	96.45mm	103.30mm	14mm	70mm	30mm	16mm	79mm	45mm	16mm	79mm	60mm	Enquire
20 teeth	101.49mm	108.40mm	14mm	75mm	30mm	16mm	84mm	45mm	16mm	84mm	60mm	Enquire
21 teeth	106.52mm	113.40mm	16mm	75mm	30mm	16mm	85mm	45mm	20mm	85mm	60mm	Enquire
22 teeth	111.55mm	118.00mm	16mm	80mm	30mm	16mm	90mm	45mm	20mm	90mm	60mm	Enquire
23 teeth	116.58mm	123.40mm	16mm	80mm	30mm	16mm	95mm	45mm	20mm	95mm	60mm	Enquire
24 teeth	121.62mm	128.30mm	16mm	80mm	30mm	16mm	100mm	45mm	20mm	100mm	60mm	Enquire
25 teeth	126.66mm	134.00mm	16mm	80mm	30mm	16mm	105mm	45mm	20mm	105mm	60mm	Enquire
26 teeth	131.70mm	139.00mm	20mm	85mm	35mm	20mm	110mm	45mm	20mm	110mm	60mm	Enquire
27 teeth	136.75mm	144.00mm	20mm	85mm	35mm	20mm	110mm	45mm	20mm	110mm	60mm	Enquire
28 teeth	141.78mm	148.70mm	20mm	90mm	35mm	20mm	115mm	45mm	20mm	115mm	60mm	Enquire
29 teeth	146.83mm	153.80mm	20mm	90mm	35mm	20mm	115mm	45mm	20mm	115mm	60mm	Enquire
30 teeth	151.87mm	158.80mm	20mm	95mm	35mm	20mm	120mm	45mm	20mm	120mm	60mm	Enquire
31 teeth	156.92mm	163.90mm	20mm	95mm	35mm	20mm	120mm	45mm	20mm	120mm	60mm	Enquire
32 teeth	161.95mm	168.90mm	20mm	95mm	35mm	20mm	120mm	45mm	20mm	120mm	60mm	Enquire
33 teeth	167.00mm	174.50mm	20mm	95mm	35mm	20mm	120mm	45mm	20mm	120mm	60mm	Enquire
34 teeth	172.05mm	179.00mm	20mm	95mm	35mm	20mm	120mm	45mm	20mm	120mm	60mm	Enquire
35 teeth	177.10mm	184.10mm	20mm	95mm	35mm	20mm	120mm	45mm	20mm	120mm	60mm	Enquire
36 teeth	182.15mm	189.10mm	20mm	100mm	35mm	20mm	120mm	45mm	25mm	120mm	60mm	Enquire
37 teeth	187.20mm	194.20mm	20mm	100mm	35mm	20mm	120mm	45mm	25mm	120mm	60mm	Enquire

There are 44 listings available, you are viewing 1—30.

1 | 2 | Next»
