QD Bushes

QD Bushes

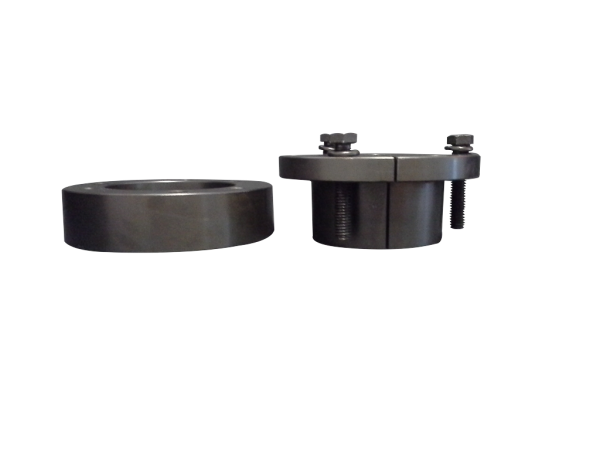

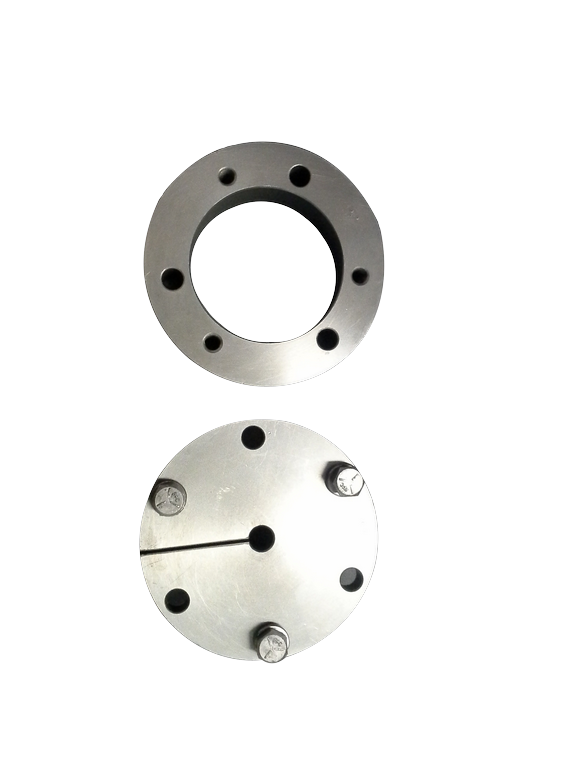

Our QD bushes are used through the industry offering convenience and design flexibility.  The taper-bored "QD" item easily fits over the tapered bush and tightening of the cap screws produces a tight fit to the shaft.  The bush is easily removed from the hub by using the pull-up bolts as jack screws.  All our QD bushes are available in pilot bore, and can be re-bored to suit the shaft requirements.
QD Bushes QD Bush.pdf (239 KB)



Name Max Bore Outside Dia Total Length A E B No. Bolts P.C.D Enquire
mm D L
JA Bush 25 50.50mm 35.40mm 7.20mm 16.60mm 34.20mm 2 42.20mm Enquire
QH Bush 30 63.70mm 34.40mm 8.80mm 24.40mm 41.10mm 3 50.80mm Enquire
SH Bush 35 68.30mm 31.90mm 9.70mm 21.10mm 47.30mm 3 57.20mm Enquire
SDS Bush 41 80.90mm 33.30mm 11.10mm 19.40mm 55.50mm 3 68.30mm Enquire
SD Bush 34 80.90mm 46.10mm 11.10mm 32.40mm 55.50mm 3 68.30mm Enquire
SF Bush 59 118.30mm 50.80mm 12.70mm 35.30mm 79.40mm 3 98.30mm Enquire
E Bush 73 152.30mm 66.50mm 19.40mm 47.20mm 96.80mm 3 127.00mm Enquire
F Bush 83 63.70mm 34.40mm 8.80mm 24.40mm 41.10mm 3 142.90mm Enquire
