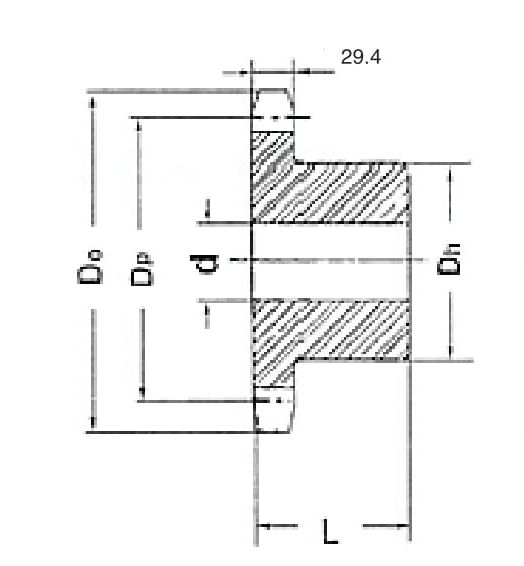

Name
|
Pitch
|
Outside
|
Bore
|
Hub
|
Hub
|

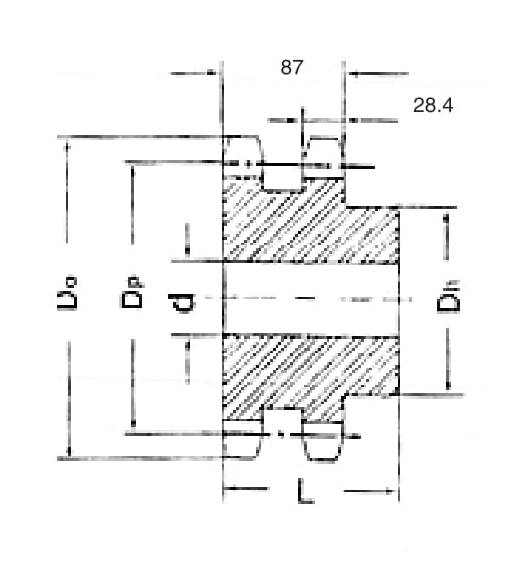

Duplex
|
Duplex
|
Duplex
|
Enquire
|
|
Via Dp
|
Dia Do
|
d
|
Dh
|
L
|
d
|
Dh
|
L
|
| 9 teeth |
148.53mm
|
170.18mm
|
38.10mm
|
92.00mm
|
57.10mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 10 teeth |
164.38mm
|
186.94mm
|
38.10mm
|
104.70mm
|
57.10mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 11 teeth |
180.34mm
|
203.45mm
|
38.10mm
|
120.60mm
|
63.50mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 12 teeth |
196.29mm
|
219.96mm
|
38.10mm
|
139.70mm
|
63.50mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 13 teeth |
212.29mm
|
236.47mm
|
38.10mm
|
152.40mm
|
69.80mm
|
50.80mm
|
152.40mm
|
120.60mm
| Enquire |
| 14 teeth |
228.29mm
|
252.98mm
|
38.10mm
|
165.10mm
|
69.80mm
|
50.80mm
|
171.40mm
|
120.60mm
| Enquire |
| 15 teeth |
244.34mm
|
269.49mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
177.80mm
|
120.60mm
| Enquire |
| 16 teeth |
260.40mm
|
286.00mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
177.80mm
|
120.60mm
| Enquire |
| 17 teeth |
275.43mm
|
302.26mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
177.80mm
|
120.60mm
| Enquire |
| 18 teeth |
292.55mm
|
318.51mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
177.80mm
|
120.60mm
| Enquire |
| 19 teeth |
308.66mm
|
335.02mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
177.80mm
|
120.60mm
| Enquire |
| 20 teeth |
324.71mm
|
351.28mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
177.80mm
|
120.60mm
| Enquire |
| 21 teeth |
340.86mm
|
367.53mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 22 teeth |
356.97mm
|
383.79mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 23 teeth |
373.07mm
|
400.05mm
|
38.10mm
|
177.80mm
|
69.80mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 24 teeth |
389.17mm
|
416.30mm
|
38.10mm
|
177.80mm
|
76.20mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 25 teeth |
405.33mm
|
432.56mm
|
38.10mm
|
177.80mm
|
76.20mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 26 teeth |
421.43mm
|
448.81mm
|
38.10mm
|
177.80mm
|
76.20mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 27 teeth |
437.59mm
|
465.07mm
|
38.10mm
|
177.80mm
|
76.20mm
|
50.80mm
|
190.50mm
|
120.60mm
| Enquire |
| 28 teeth |
453.69mm
|
481.33mm
|
38.10mm
|
177.80mm
|
76.20mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 30 teeth |
486.00mm
|
513.84mm
|
38.10mm
|
177.80mm
|
76.20mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 38 teeth |
615.10mm
|
634.50mm
|
38.10mm
|
177.80mm
|
76.20mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 45 teeth |
728.26mm
|
756.92mm
|
38.10mm
|
177.80mm
|
76.20mm
|
N/A
|
N/A
|
N/A
| Enquire |
