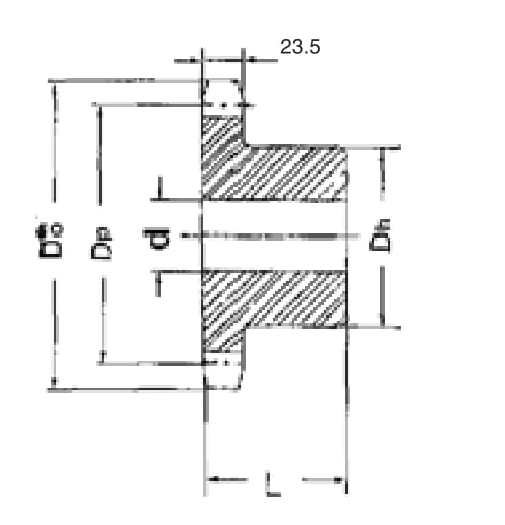

ASA140 (1 3/4 Pitch) American Standard Sprockets
|
Name
|
Pitch
|
Outside
|
Bore
|
Hub
|
Hub
|

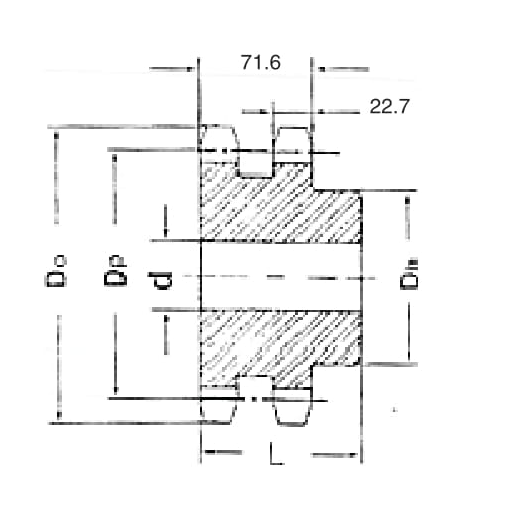

Duplex
|
Duplex
|
Duplex
|
Enquire
|
|
Via Dp
|
Dia Do
|
d
|
Dh
|
L
|
d
|
Dh
|
L
|
| 11 teeth |
157.81mm
|
178.05mm
|
38.10mm
|
107.90mm
|
57.10mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 12 teeth |
171.75mm
|
192.53mm
|
38.10mm
|
114.30mm
|
57.10mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 13 teeth |
185.75mm
|
207.01mm
|
38.10mm
|
139.70mm
|
60.30mm
|
41.30mm
|
127.00mm
|
95.20mm
| Enquire |
| 14 teeth |
199.77mm
|
221.48mm
|
38.10mm
|
139.70mm
|
60.30mm
|
41.30mm
|
139.70mm
|
95.20mm
| Enquire |
| 15 teeth |
213.81mm
|
235.71mm
|
38.10mm
|
158.70mm
|
60.30mm
|
41.30mm
|
165.10mm
|
95.20mm
| Enquire |
| 16 teeth |
227.86mm
|
250.19mm
|
38.10mm
|
158.70mm
|
63.50mm
|
41.30mm
|
177.80mm
|
101.60mm
| Enquire |
| 17 teeth |
241.90mm
|
264.61mm
|
38.10mm
|
158.70mm
|
63.50mm
|
41.30mm
|
177.80mm
|
101.60mm
| Enquire |
| 18 teeth |
255.98mm
|
278.89mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 19 teeth |
270.07mm
|
293.11mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 20 teeth |
284.12mm
|
307.34mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 21 teeth |
298.27mm
|
321.56mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 22 teeth |
312.34mm
|
335.78mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 23 teeth |
326.44mm
|
350.01mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 24 teeth |
340.53mm
|
364.23mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 25 teeth |
354.66mm
|
378.46mm
|
38.10mm
|
158.70mm
|
63.50mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 26 teeth |
368.75mm
|
392.68mm
|
38.10mm
|
158.70mm
|
76.20mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 27 teeth |
382.90mm
|
406.90mm
|
38.10mm
|
158.70mm
|
76.20mm
|
44.40mm
|
177.80mm
|
101.60mm
| Enquire |
| 28 teeth |
396.97mm
|
421.13mm
|
38.10mm
|
158.70mm
|
76.20mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 30 teeth |
425.24mm
|
449.58mm
|
38.10mm
|
158.70mm
|
76.20mm
|
N/A
|
N/A
|
N/A
| Enquire |
| 38 teeth |
538.30mm
|
563.10mm
|
38.10mm
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
| 45 teeth |
637.23mm
|
662.43mm
|
38.10mm
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
