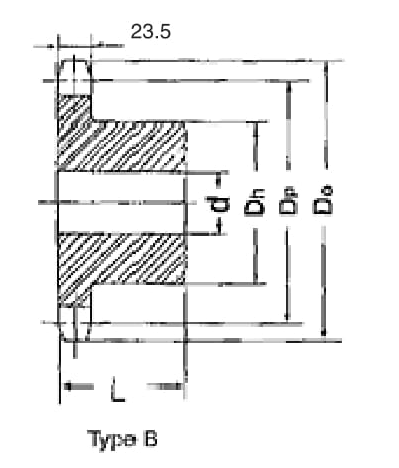

ASA120 (1 1/2 Pitch) American Standard Sprockets
|
Name
|
Pitch
|
Outside
|
Bore
|
Hub
|
Hub
|

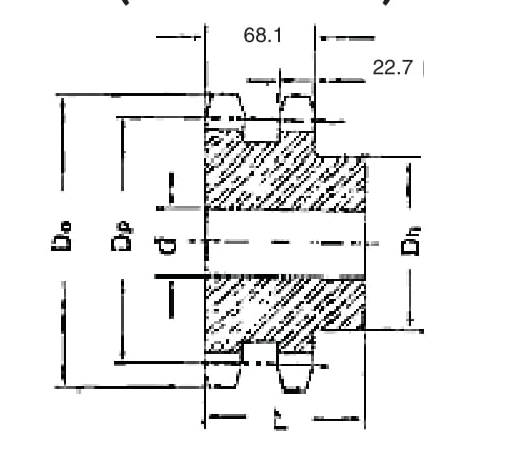

Duplex
|
Duplex
|
Duplex
|
Enquire
|
|
Via Dp
|
Dia Do
|
d
|
Dh
|
L
|
d
|
Dh
|
L
|
| 9 teeth |
111.40mm
|
127.50mm
|
31.70mm
|
85.70mm
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
| 10 teeth |
123.29mm
|
140.20mm
|
31.70mm
|
95.20mm
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
| 11 teeth |
135.25mm
|
152.65mm
|
31.70mm
|
90.40mm
|
N/A
|
38.10mm
|
90.40mm
|
95.20mm
| Enquire |
| 12 teeth |
147.21mm
|
165.10mm
|
31.70mm
|
104.70mm
|
N/A
|
38.10mm
|
105.80mm
|
95.20mm
| Enquire |
| 13 teeth |
159.23mm
|
177.54mm
|
31.70mm
|
115.80mm
|
N/A
|
38.10mm
|
114.30mm
|
95.20mm
| Enquire |
| 14 teeth |
171.22mm
|
189.73mm
|
31.70mm
|
120.60mm
|
N/A
|
38.10mm
|
127.00mm
|
95.20mm
| Enquire |
| 15 teeth |
183.26mm
|
202.18mm
|
31.70mm
|
120.60mm
|
N/A
|
38.10mm
|
133.30mm
|
95.20mm
| Enquire |
| 16 teeth |
199.87mm
|
214.37mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
133.30mm
|
95.20mm
| Enquire |
| 17 teeth |
207.34mm
|
226.56mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
133.30mm
|
95.20mm
| Enquire |
| 18 teeth |
219.43mm
|
239.01mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
133.30mm
|
95.20mm
| Enquire |
| 19 teeth |
231.49m
|
251.20mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
133.30mm
|
95.20mm
| Enquire |
| 20 teeth |
243.53mm
|
263.39mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
133.30mm
|
95.20mm
| Enquire |
| 21 teeth |
255.65mm
|
275.59mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
139.70mm
|
95.20mm
| Enquire |
| 22 teeth |
267.74mm
|
287.78mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
146.00mm
|
101.60mm
| Enquire |
| 23 teeth |
279.80mm
|
299.97mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 24 teeth |
291.89mm
|
312.16mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 25 teeth |
304.01mm
|
324.35mm
|
31.70mm
|
133.30mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 26 teeth |
316.07mm
|
336.55mm
|
38.10mm
|
133.30mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 27 teeth |
328.19mm
|
348.74mm
|
38.10mm
|
152.40mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 28 teeth |
340.28mm
|
360.93mm
|
38.10mm
|
152.40mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 30 teeth |
364.51mm
|
385.31mm
|
38.10mm
|
152.40mm
|
N/A
|
38.10mm
|
165.10mm
|
101.60mm
| Enquire |
| 35 teeth |
425.04mm
|
446.27mm
|
38.10mm
|
152.40mm
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
| 38 teeth |
461.37mm
|
482.66mm
|
38.10mm
|
152.40mm
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
| 45 teeth |
546.19mm
|
567.72mm
|
38.10mm
|
152.40mm
|
N/A
|
N/A
|
N/A
|
N/A
| Enquire |
