ASA100 (1 1/4) American Standard Sprockets

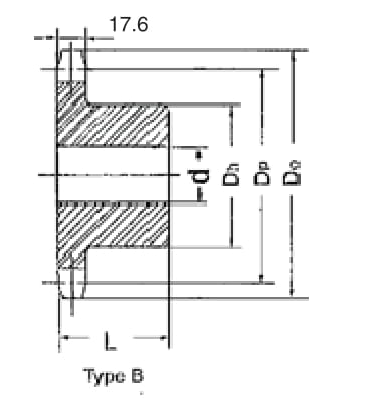

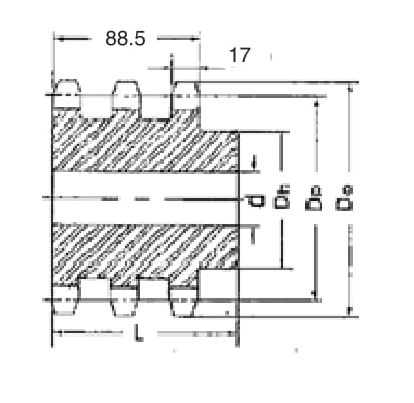

Name Pitch Outside Bore Hub Hub Duplex Duplex Duplex Triplex Triplex Triplex Enquire
Via Dp Dia Do d Dh L d Dh L d Dh L
9 teeth 92.83mm 106.17mm 25.40mm 71.40mm 47.60mm 25.40mm 60.30mm 73.00mm N/A N/A N/A Enquire
10 teeth 102.74mm 116.84mm 25.40mm 82.50mm 47.60mm 25.40mm 69.80mm 73.00mm N/A N/A N/A Enquire
11 teeth 112.72mm 127.25mm 25.40mm 90.40mm 47.60mm 25.40mm 79.30mm 73.00mm 25.40mm 79.30mm 107.90mm Enquire
12 teeth 122.68mm 137.66mm 25.40mm 101.60mm 47.60mm 28.50mm 85.70mm 73.00mm 28.50mm 85.70mm 107.90mm Enquire
13 teeth 132.68mm 147.82mm 25.40mm 98.40mm 41.20mm 28.50mm 96.80mm 73.00mm 28.50mm 96.80mm 107.90mm Enquire
14 teeth 142.69mm 158.24mm 31.70mm 106.30mm 41.20mm 28.50mm 106.30mm 73.00mm 28.50mm 106.30mm 107.90mm Enquire
15 teeth 152.73mm 168.40mm 31.70mm 114.30mm 44.40mm 31.70mm 117.40mm 79.30mm 31.70mm 117.40mm 114.30mm Enquire
16 teeth 162.76mm 178.56mm 33.30mm 114.30mm 44.40mm 31.70mm 127.00mm 79.30mm 31.70mm 127.00mm 114.30mm Enquire
17 teeth 172.79mm 188.97mm 33.30mm 114.30mm 44.40mm 31.70mm 133.30mm 79.30mm 31.70mm 133.30mm 114.30mm Enquire
18 teeth 182.85mm 199.13mm 33.30mm 114.30mm 44.40mm 31.70mm 133.30mm 79.30mm 31.70mm 133.30mm 120.60mm Enquire
19 teeth 192.91mm 209.29mm 33.30mm 114.30mm 50.80mm 31.70mm 139.70mm 85.70mm 31.70mm 139.70mm 120.60mm Enquire
20 teeth 202.94mm 219.45mm 33.30mm 114.30mm 50.80mm 31.70mm 139.70mm 85.70mm 31.70mm 139.70mm 120.60mm Enquire
21 teeth 213.05mm 229.61mm 33.30mm 114.30mm 50.80mm 31.70mm 139.70mm 85.70mm 31.70mm 139.70mm 120.60mm Enquire
22 teeth 223.11mm 239.77mm 33.30mm 114.30mm 50.80mm 31.70mm 139.70mm 85.70mm 31.70mm 139.70mm 120.60mm Enquire
23 teeth 233.17mm 249.93mm 31.70mm 114.30mm 50.80mm 31.70mm 114.30mm 50.80mm 31.70mm 146.00mm 120.60mm Enquire
24 teeth 243.23mm 260.35mm 31.70mm 114.30mm 50.80mm 31.70mm 146.00mm 85.70mm 31.70mm 146.00mm 120.60mm Enquire
25 teeth 253.33mm 270.51mm 31.70mm 114.30mm 50.80mm 31.70mm 146.00mm 85.70mm 31.70mm 146.00mm 120.60mm Enquire
26 teeth 263.39mm 280.67mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
27 teeth 263.39mm 280.67mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
28 teeth 283.56mm 300.73mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
29 teeth 293.64mm 310.89mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
30 teeth 303.75mm 321.05mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
32 teeth 323.92mm 341.37mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
33 teeth 334.01mm 351.53mm 31.70mm 127.00mm 50.80mm 38.10mm 146.00mm 85.70mm 38.10mm 146.00mm 120.60mm Enquire
35 teeth 354.20mm 371.85mm 31.70mm 127.00mm 50.80mm 38.10mm 152.40mm 107.90mm 38.10mm 152.40mm 152.40mm Enquire
36 teeth 364.31mm 382.01mm 31.70mm 127.00mm 63.50mm 38.10mm 152.40mm 107.90mm 38.10mm 152.40mm 152.40mm Enquire
38 teeth 384.50mm 402.33mm 31.70mm 127.00mm 63.50mm 38.10mm 152.40mm 107.90mm 38.10mm 152.40mm 152.40mm Enquire
40 teeth 404.69mm 422.40mm 31.70mm 127.00mm 63.50mm N/A N/A N/A N/A N/A N/A Enquire
42 teeth 424.89mm 442.72mm 31.70mm 127.00mm 63.50mm N/A N/A N/A N/A N/A N/A Enquire
45 teeth 455.16mm 473.20mm 38.10mm 127.00mm 63.50mm N/A N/A N/A N/A N/A N/A Enquire
